Piston impact vibrator BVP series

Model: BVP-30C/BVP-40C/BVP-60C
Place of Origin: Zhejiang,China (Mainland)
Brand Name: TSPC

inquiry

basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:60.0 USDProduction Capacity:10000
Payment Terms:Paypal, T/T, WU, Money GramPacking:cartons
Min. Order:10 Piece/PiecesDelivery Date:within five days
Means of Transport:Ocean, Air, Land

Product features

• Large power, a small amount of lubrication, quiet.
• High strength aluminum alloy hardening treatment, light weight.
• Low frequency vibration, the best effect on bridge damage
• Adjust the amplitude and frequency of vibration



• To solve the tank material attachment, auxiliary material flowing
• Can be used for vibration screening and horizontal conveying equipment

Piston reciprocating impactWorking pressure Frequency/MinForceAir consumption/MinWeight
Model(MPa)(HZ)(N)(ANR)(MM)
BVP-30C0.2~0.61765~28571255~1790186~2701.300
BVP-40C0.2~0.61333~18751444~2690220~2702.100
BVP-60C0.2~0.61000~36801543~3680260~2954.350

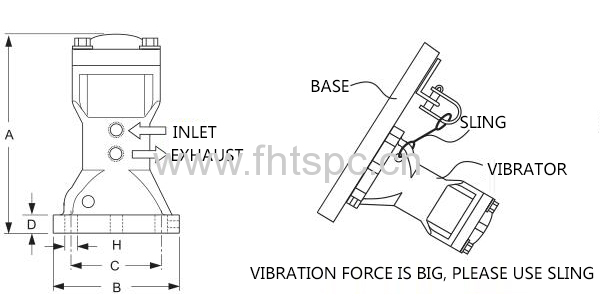

Piston reciprocating impactABCDHInletExhaustBase
Model(mm)(mm)(mm)(mm)(mm)(mm)(G)(Shape)
BVP-30C128906018111/81/8Round
BVP-40C160100751811 1/41/4Round
BVP-60C2081401052015 1/41/4Round



Installation maintenance and precautions
(1)The vibrator base is welded on the right position, and be fixed with the base of 4pcs M10 * 30 bolts. Solenoid valve, filter, oil mist connect right and well.
(2) the vibrator needs to be pure and dry compressed air, so it is necessary to check the filter regularly,timely replacement of damaged.
(3) check the base bolts regularly to avoid loosening.
(4)If there is fault, it is necessary to inform the manufacturer to maintain,open the cover and remove prohibited
